MPLFLN-BD : M Plan SemiApochromat BD
Plan SemiApochromat objective lenses, giving high-level correction for chromatic aberration. The series secures a W.D. of 1mm or longer. Since the exit pupil position of the 5x-150x objective lenses is standardized, the position of the DIC prism does not have to be switched when changing the magnification
  • Designed for brightfield, darkfield, DIC (differential interference contrast), fluorescence and simple polarized light observation methods

  • Plan semi-apochromat objective lens corrected for chromatic aberration for maximum performance for even for the most challenging materials science applications

  • Complete line-up of magnifications ranging from 5x through 150x. Standard pupil position allows for the use of a single DIC prism for all objective lenses (5x-150x)

Specifications


Dimensions

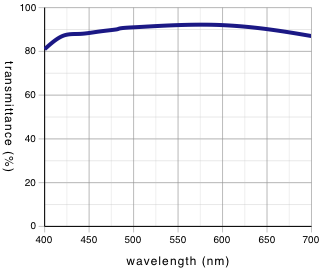

Transmittance/Wavelength

mplfln100xbd_transmittance_wavelength_gr
