MPLFLN : M Plan SemiApochromat
The MPLFLN objective lens has well balanced performance with a semi apochromat color correction, a fair working distance and a high numerical aperture and is suitable for the widest range of applications.

  • Objective lenses dedicated to brightfield

  • Plan semi-apochromat objective lenses corrected for chromatic aberration at a high level

  • A line-up of objective lenses from 1.25x through 100x with working distance of 1mm or more

  • Unified pupil position from 5x though 100x to eliminate the need for switching DIC prism when changing objective lenses *1



          *1: 1.25x and 2.5x lenses require the use an analyzer and polarizer.

Specifications


Dimensions

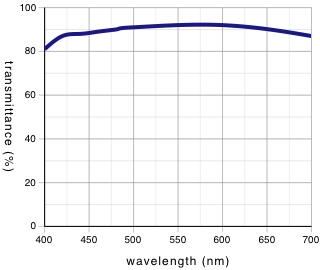

mplfln100x_transmittance_wavelength_grap

Transmittance/Wavelength
